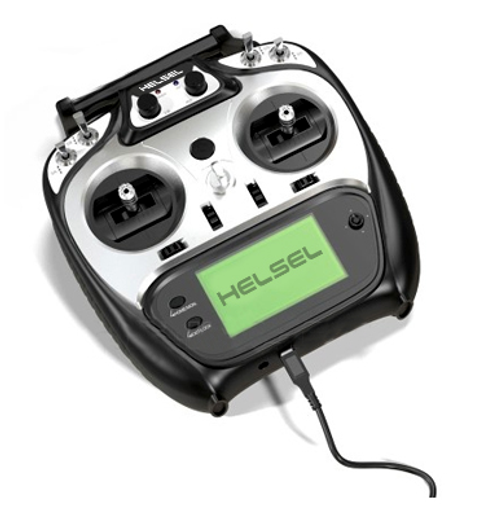

The remote controller that is optimized for drone soccer.

ST08 is an 8 channel remote controller optimized for drone soccer. It can be easily operated by anyone since it supports both English and Korean. It can also be used for various transportations such as helicopter, aircraft, car, boat, etc. along with an easy-to-understand interface. With its fast response time and 8 channels, it enables you to set up in that specific way you want.

Main Features

User Custom Channel
Wireless Data Copy
Eng/Kor Supported
Dual Engine
Charging by Itself
Receiver Port Setting
8 Channels
FHSS System
5 Mixing Controls
USB Online Upgrade

English / Korean

The default language is English, but you can change the language setting to Korean if you want so.

5 Mixing Controls

Precise & accurate setting is possible according to the user's preference.

FHSS Signal System

Bi-direction transmission & 64-point frequency 3.6ms high-speed hopping.

Dual Engine System Supported

ST08 supports various vehicles that use dual-engine & motor. (Aircraft, boat, train etc.)

USB Online Firmware Upgrade

Online firmware upgrade is supported for free. (Cable needs to be purchased separately)

ST08 SPECIFICATION

 Transmitter

Model

Channel

Operating Voltage

Supported Vehicles

Resolution

Frequency Area

Frequency Hopping

Data Save

Mixing

Language

Upgrade

Display

Servo

ST08

8 Channels

3.7 V - 6 V (1s Lithium battery)

Helicopter, V.T.O.L, multi-rotor,

robot, car, boat etc.

Full-channel 4096 resolution

2.4GHz (Bi-direction)

FHSS frequency hopping

(64-point, 3.6 ms)

5 groups

5 mixings

English, Korean

USB online upgrade

3.5 inch, 128 x 64 dot-matrix display

180 / 270° servo supported

 Receiver

Model

Frequency Band

Operating Voltage

Application

Resolution

W.BUS

Bi-direction Transmission

180 / 270° Servo

Receiver Port Setting

External Voltage Detection

RF201S

2.4GHz

3.8 V - 6.5 V

Helicopter, V.T.O.L, multi-rotor, robot,

car, boat etc.

Full-channel 4096 resolution (PPM),

2048 resolution (W.BUS)

Supported

Supported

Supported

DC 0 ~36 V

20.4 gr
